How to Integrate Your LMS with YouTestMe Using LTI

The purpose of this workflow is to demonstrate the configuration process and test-taking from the LMS through the LTI protocol. The LMS emulator will be used.

Creating an integration #

To create an integration in the YouTestMe application:

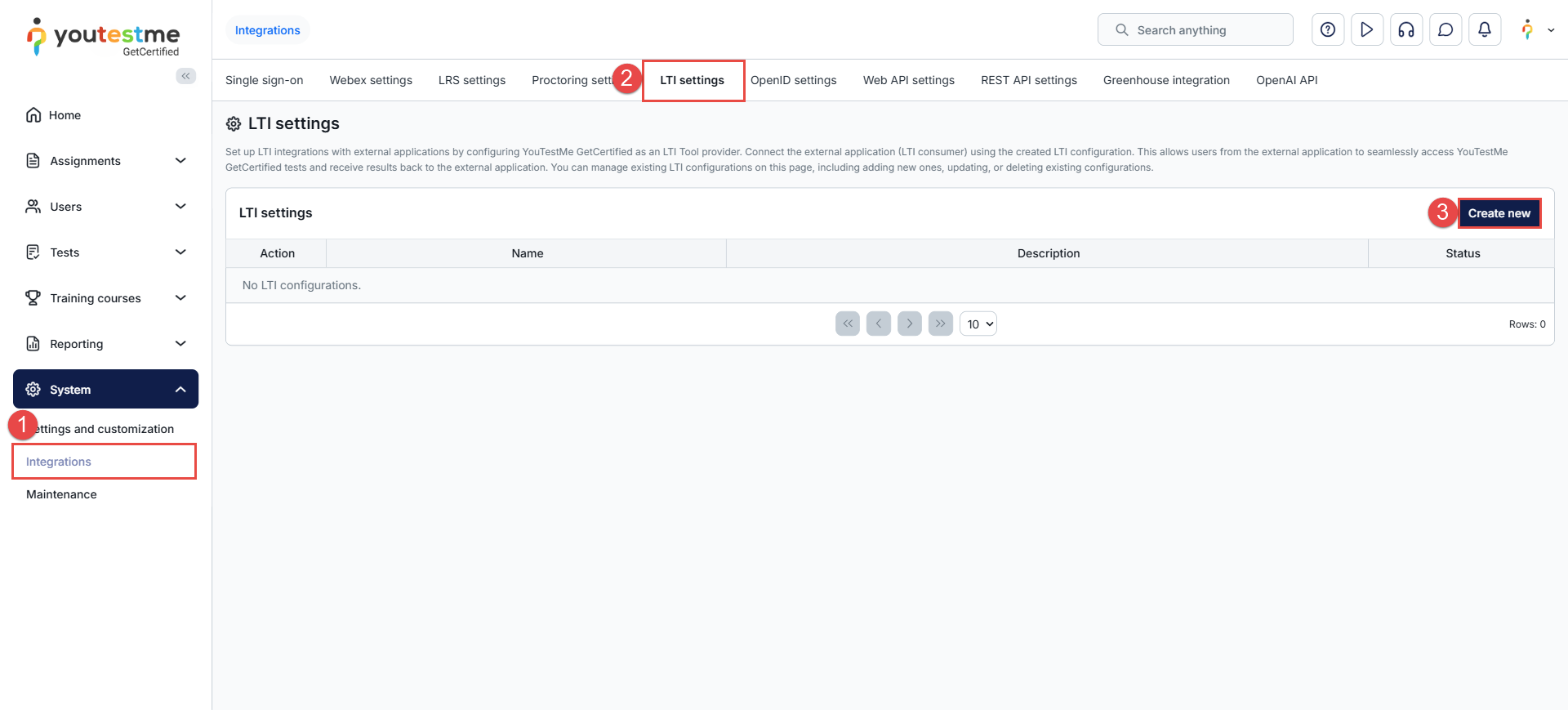

  1. Navigate to the “System” option in the left side menu, then choose “Integrations”.
  2. Click the “LTI settings” tab.
  3. Click the “Add new LTI configuration” button.
  4. Enter an integration name.
  5. Optionally, enter a description.
  6. Click the “Save” button.

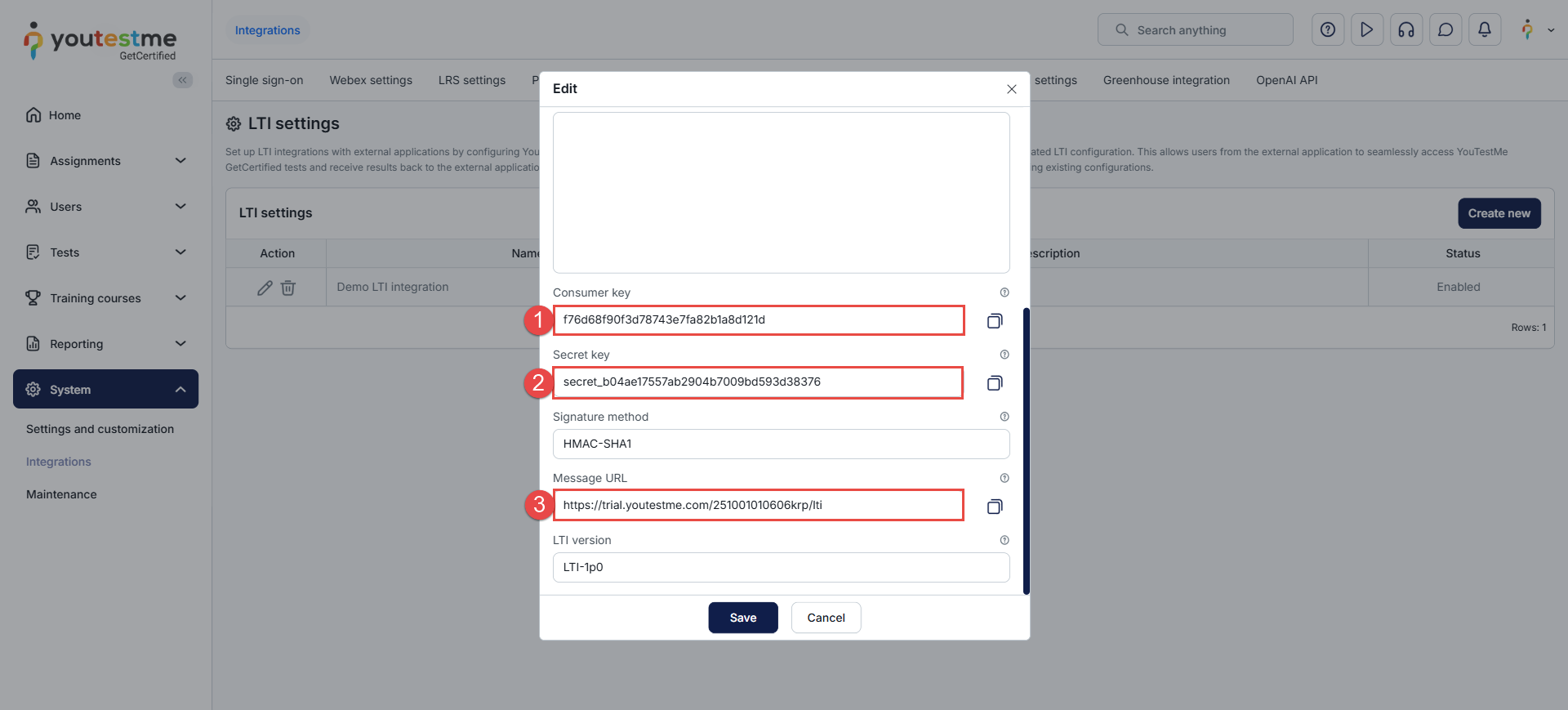

The new integration is created. The information displayed in the dialog will be needed to set the integration in LMS.

Important information is:

  1. Consumer key.
  2. Secret key.
  3. Message URL.

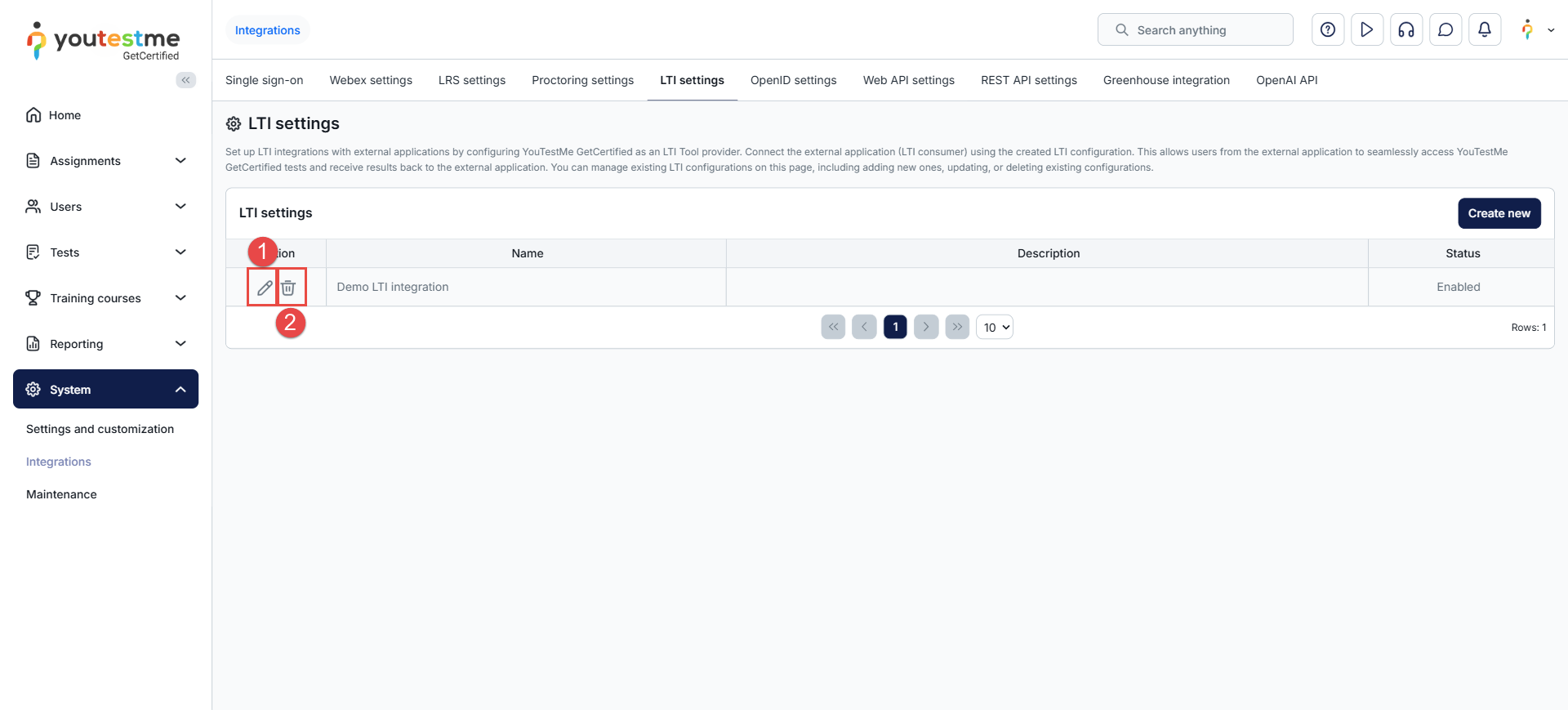

If you want to access the integration details later, you can:

  1. Click the three dots icon on the left side of the integration name.
  2. Click the “Edit” button.

    You will have to copy them to the appropriate field explained below.

    Creating a test #

    The next important step is to create a test.

    You can check the following link if you need any help with the test creation.

    It is important to create active self-enrollment sessions and publish the test to allow test-taking through LMS.

    Important information is the test ID and a testing session ID since you can set integration that way to assign the candidates to the testing session directly or to give them access to the test where they can choose in which testing session they want to start the test.

    To see the test ID:

    1. Open the desired test.
    2. Navigate to the “Settings” tab.
    3. See the ID in the “Test ID” field.

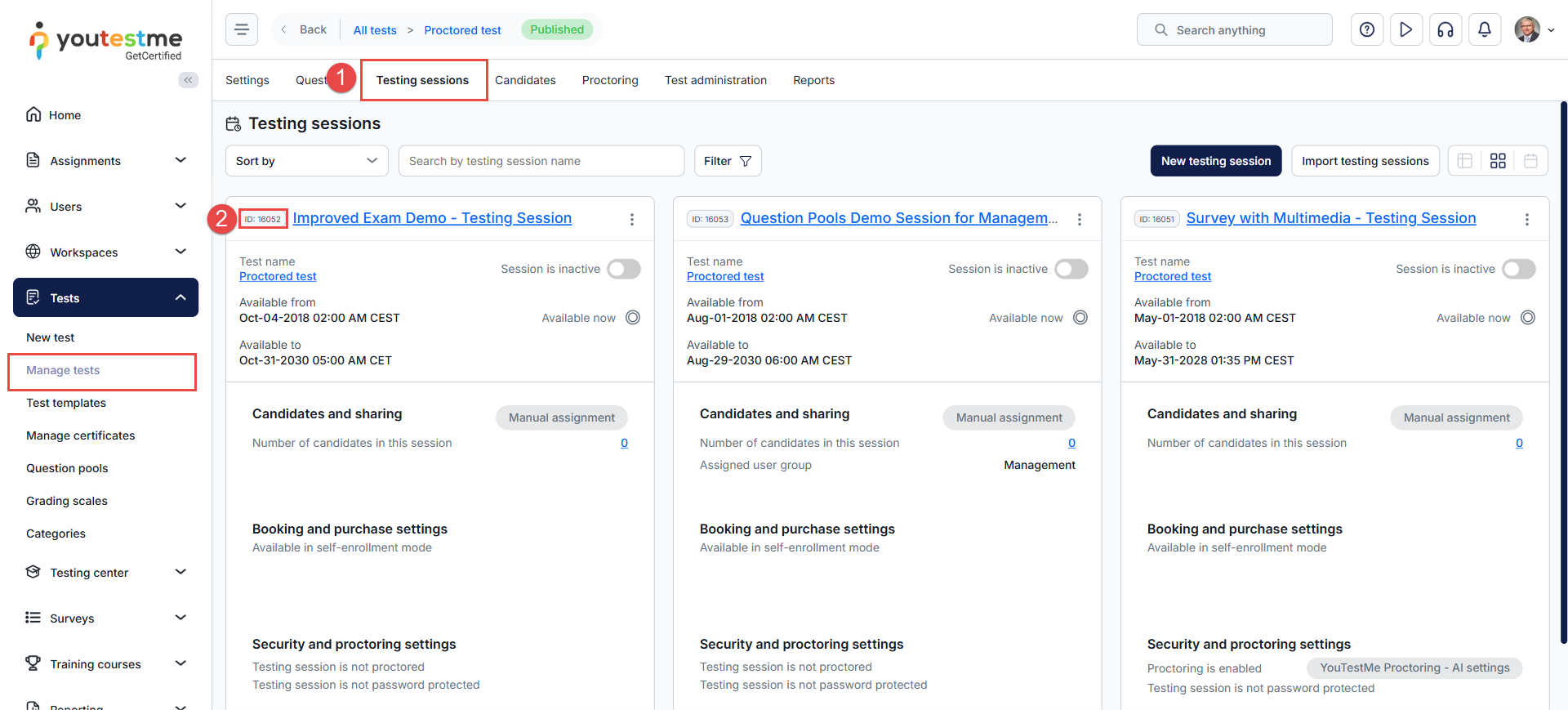

    To see the testing session ID:

    1. Open the desired test.
    2. Navigate to the testing session tab.
    3. Check the ID at the top left corner of the testing session card.

    More information on how to set both integration settings will be explained below.

    LMS Configuration #

    For the demonstration, LMS Emulator will be used.

    1. Access https://saltire.lti.app/platform.
    2. Navigate to the “Security Model” tab.
    3. In the “Message URL” field, enter the “Message URL” text from the YouTestMe application.
    4. In the “Consumer key” field, enter the “Consumer key” text from the YouTestMe application.
    5. In the “Shared secret” field, enter the “Secret key” text from the YouTestMe application.
    6. Click the “Save” button on the top left corner.

    Allow access to the test #

    To give candidates access to the test where they can choose in which testing session they want to start the test you should do the following:

    1. Navigate to the “Message” tab.
    2. In the “Custom parameters” field, enter the test_id=desired_test_id.
    3. Click the “Save” button.

    Once the integration is set, a candidate can start the test. To start the test, click the “Connect” button in the top left corner.

    The candidate will be redirected to the YouTestMe application, where they can start the test. If there are few testing sessions, the candidate should click the “Choose the session” button to choose the desired one to start the test. Otherwise, the candidate should only click the “Book” button to book the available session.

    Once the test is completed, the candidate may be redirected to the personal report (depending on the test settings), and once checked, the candidate can sign out by clicking the button in the top right corner.

    Once signed out, the candidate will be redirected to the LMS page.

    The candidate can access their report by clicking the “View” button, then “Gradebook”.

    Allow access to the testing session directly #

    To give candidates access to the testing session directly, you should do the following:

    1. Navigate to the “Message” tab.
    2. In the “Custom parameters” field, enter the testng_session_id=desired_testing_session_id.
    3. Click the “Save” button.

    Once the integration is set, a candidate can start the test. To start the test, click the “Connect” button in the top left corner.

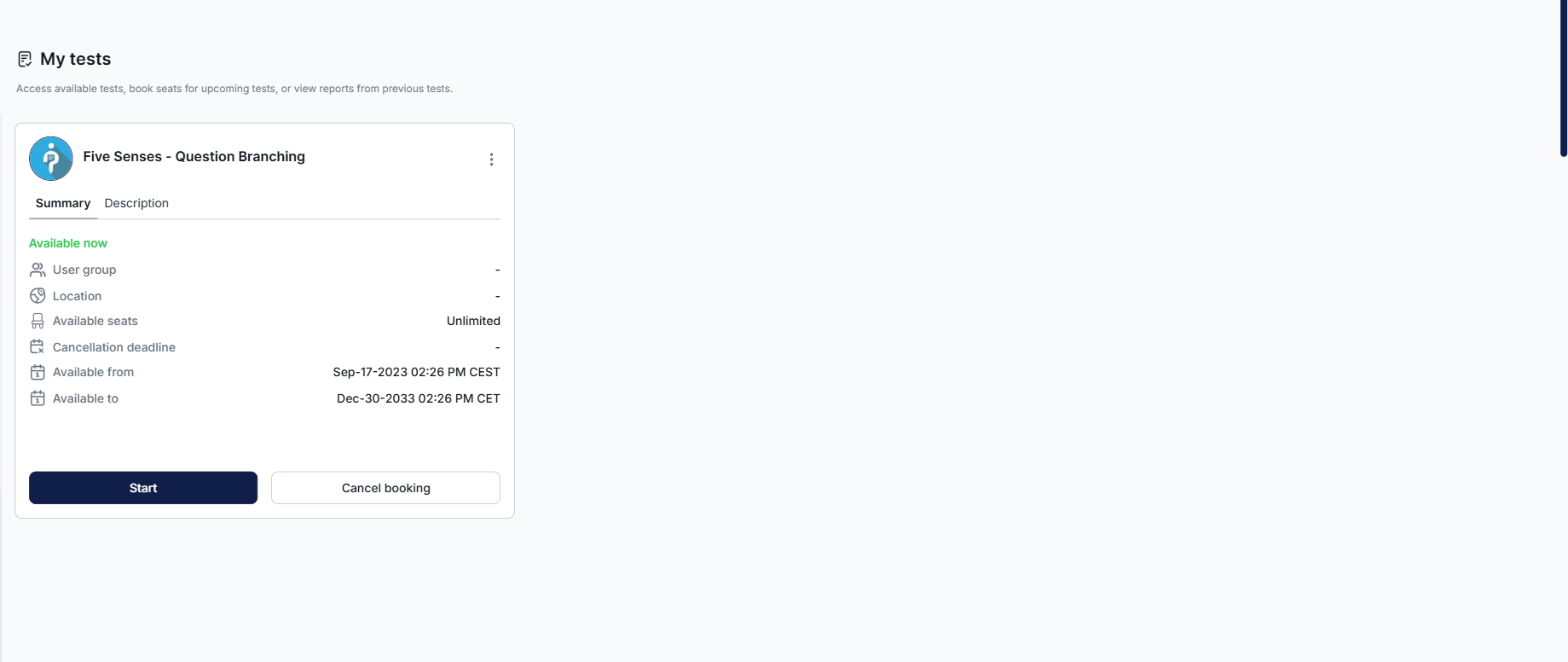

    The candidate will be redirected to the YouTestMe application, where they can start the test. Since the candidate has already been assigned to the testing session, they will have the “Start” button. The rest of the process is the same as for the first scenario.
